A2 Sheetfed UV Spot Varnish Coating Machine

Name: A2 Sheetfed UV Spot Varnish Coating Machine
Brand: ECOOGRAPHIX
Price: 1 USD

Quality A2 Sheetfed UV Spot Varnish Coating Machine for sale

Brand Name : ECOOGRAPHIX

Model Number : SD750

Certification : CE

Place of Origin : China

MOQ : 1SET

Payment Terms : L/C, T/T

Delivery Time : 30DAYS

Packaging Details : Standard Export Packing

Price : Negotiable

Supply Ability : 5sets

Max.Paper size : (L)580×(W)750

Max.Window size : (L)310×(W)350

Machine size : (L)955×(W)250×(H)170(cm)

Paper Thickness : 80-500gsm

Varnish Type : UV varnish or waterbase varnish

Coating registration accuracy : ±0.2mm

Speed : 9500s/h

Contact Now

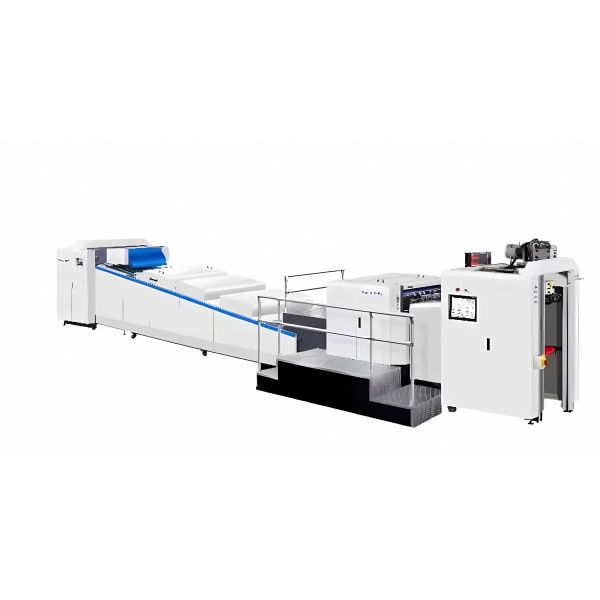

A2 Sheetfed UV Spot Varnish Coating Machine

The SD750 is the A2 size UV spot varnish coating machine applies a clear, glossy liquid varnish to specific areas of printed materials, curing it instantly with UV light or IR light to create contrast, texture, and premium effects on things like business cards ,book cover or packaging.

The machine do the full coating or partial reserved coating by the rubber roller with printing blanket, do the spot coating or select coating by anilox roller with flexo plate. The UV varnish can be dried by UV lamp or LED UV , the waterbased varnish can be dried by IR lights.

Technical Specifications:

High Speed UV Spot and Overall Varnish Coating Machine
Model	Ecoo SD-750
Max.sheet size	580x750mm
MIN.sheet size	310X350mm
Max.coating size	570x740mm
Sheet thickness	80-500gsm
Max Coating Thickness	0.025mm
Coating Media	Water Base Varnish or UV Varnish
Coating registration accuracy	±0.2mm
Production speed	9000sheets/hour
Weight	6Ton
Dimension	9550x2405x1700mm
Power	Max 32KW
Remark: Production speed depending on sheet weight, size and quality
